A high-performance finite element solver for the steady-state Advection-Diffusion-Reaction (ADR) equation using the deal.II library. This project implements and compares two parallelization strategies:

Matrix-Based Solver: Explicit sparse matrix assembly with WorkStream threading + AMG preconditioning
Matrix-Free Solver: On-the-fly operator evaluation with Geometric Multigrid (GMG) preconditioning

Both solvers support hybrid MPI + threading parallelization for optimal performance on modern HPC architectures.

The complete documentation of this project code can be found here docs.

Features

Feature	Matrix-Based	Matrix-Free
Sparse Matrix Storage	✓	✗
Thread-Parallel Assembly	WorkStream	FEEvaluation
Preconditioner	AMG (PETSc/hypre)	GMG (Chebyshev)
Memory Scaling	O(N × stencil)	O(N)
Best For	Small-medium problems	Large-scale problems

Building

Prerequisites

We recommend using Spack to manage dependencies:

# Install Spack
git clone --depth=2 https://github.com/spack/spack.git
. spack/share/spack/setup-env.sh

# Install deal.II with required dependencies
spack install dealii +mpi +petsc +p4est \
    '~gmsh' '~arborx' '~taskflow' '~ginkgo' '~opencascade' '~cgal' '~trilinos' \
    '^petsc+hypre+metis+hdf5' \
    '^mpich' \
    '^python@3.11'

Compilation

# Load deal.II environment
spack load dealii

# Build the project
mkdir build && cd build
cmake ..
make -j$(nproc)

Usage

Running Examples

# Matrix-based solver (single process)
./main_matrix_based

# Matrix-free solver (single process)
./main_matrix_free

# Hybrid MPI + threading
export OMP_NUM_THREADS=4
mpirun -np 8 ./main_matrix_free

Running Benchmarks

# Time complexity study (refinement levels 2-10, degree 2)
mpirun -np 4 ./main_2d --min-ref 2 --max-ref 10 --degree 2 --output results.csv

# Convergence verification
mpirun -np 4 ./convergence_study

# Scaling study
mpirun -np 16 ./scaling_study --test strong

Command-Line Options

Option	Description	Default
--min-ref, -m	Minimum refinement level	2
--max-ref, -M	Maximum refinement level	10
--degree, -d	Polynomial degree	2
--output, -o	Output CSV file	complexity_2d.csv
--threads, -t	Threads per MPI process	auto

Submit PBS cluster

qsub submit_benchmark_2d.pbs

qsub submit_scaling_study.pbs

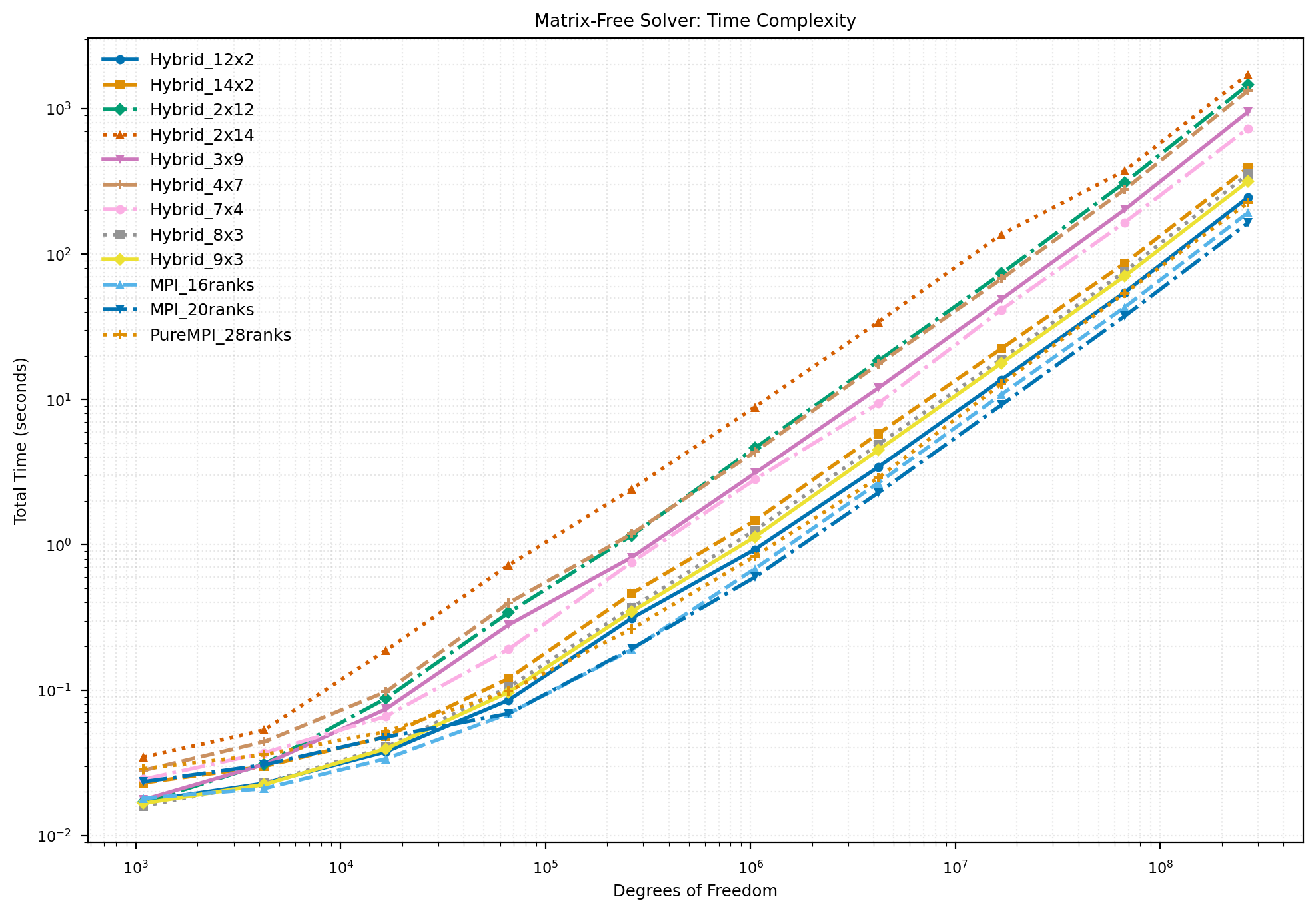

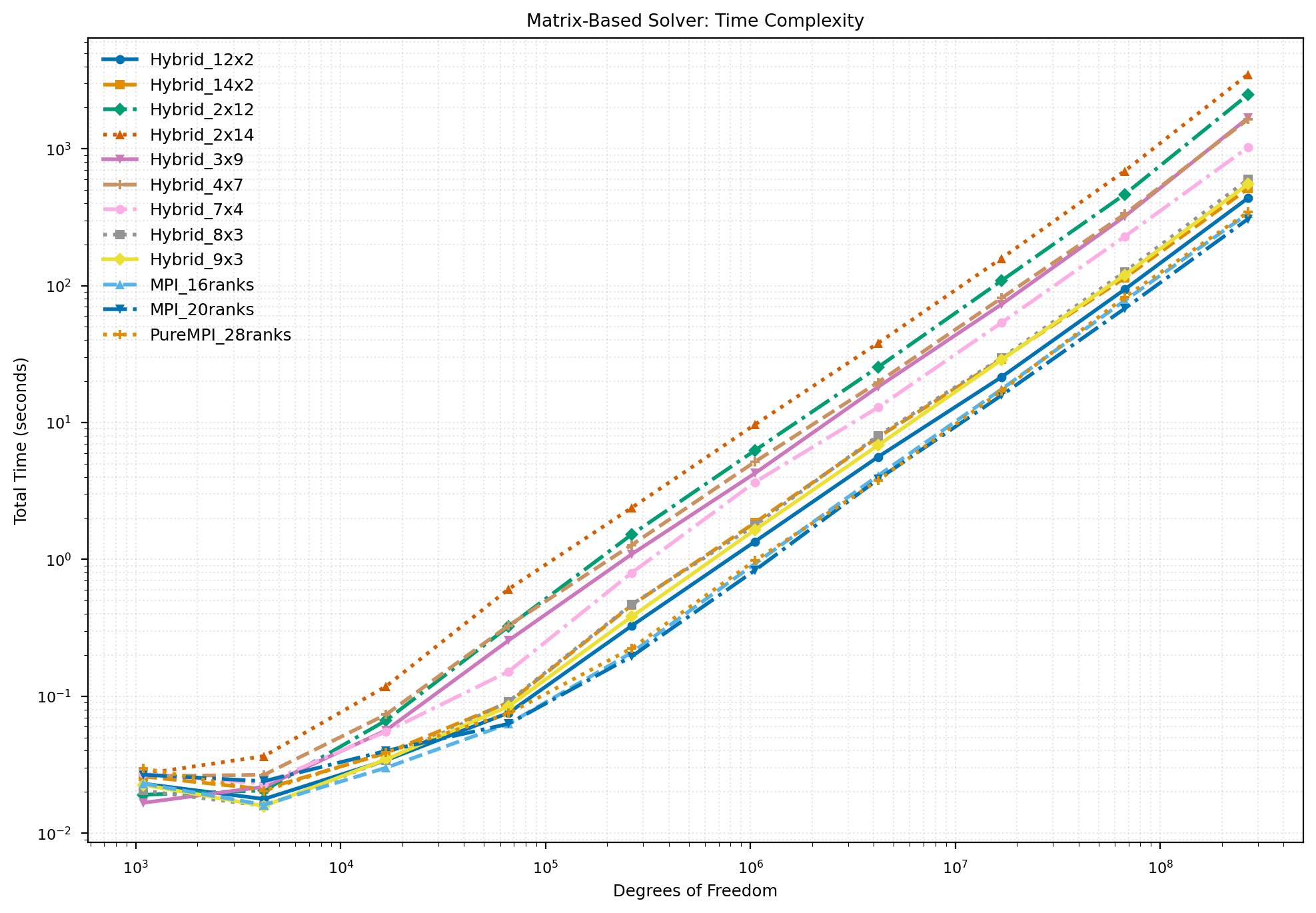

Performance

References

Authors

Peng Rao
Jiali Claudio Huang
Ruiying Jiao

Politecnico di Milano — M.Sc. in High Performance Computing

License

This project is licensed under the MIT License.
